CAT5E Outdoor Bulk Ethernet Cable, Solid Copper, UL Listed UTP CMX, 24 AWG - Beige/Yellow
Our Outdoor CAT5E Cable is ideal for your outdoor voice, data, video and security networking applications. Whether you are wiring your home, office or entire campus, we have the network solution that is right for you.

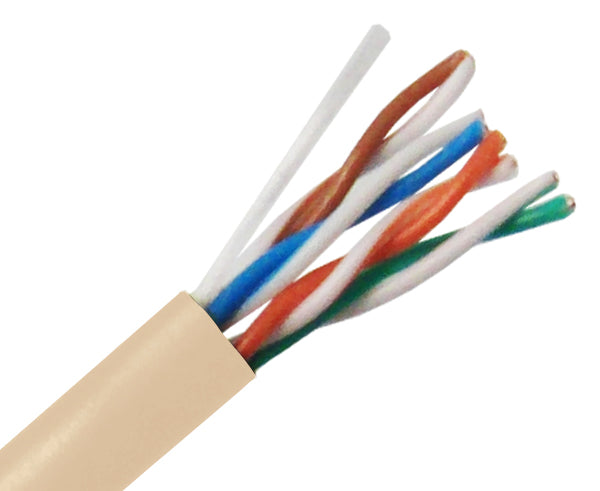

This UL Listed Outdoor CAT5E cable is the perfect fit for installations where the cable will be outside and above ground. This cable's 8 conductors (4-Pairs) are solid bare copper with a high density polyethylene (HDPE) insulation and a CMX rated PVC Jacket. Our Category 5E CMX Rated Outdoor Cable is designed for residential outdoor LAN applications and is resistant to cracking after long-term UV exposure, making it the ideal solution for installation runs that require the cable to be exposed to the elements. This cable is also tested up to speeds of 350MHz.
To make sure we are supplying our customers with high quality bulk Ethernet cables our cable have to meet and/or exceeds CAT5E TIA 568 C.2 standards. Our CAT5E Outdoor cable is also manufactured to meet current CAT5E guidelines and is verified by outside standards organizations including c(UL)us and c(ETL)us as well as being RoHS Compliant.
Cat 5E Bulk Cable Options
|Stranded Copper UTP||Stranded Copper F/UTP||Solid Copper UTP||Solid Copper F/UTP|
|General (CM)||General (CM)||General (CM)||Outdoor (CMX)||Riser (CMR)||Plenum (CMP)||Outdoor (CMX)||Riser (CMR)||Plenum (CMP)|
Cat 6 Bulk Cable Options
|Stranded Copper UTP||Stranded Copper F/UTP||Solid Copper UTP||Solid Copper F/UTP||Solid Copper S/FTP|
|General (CM)||General (CM)||General (CM)||Outdoor (CMX)||24AWG Riser (CMR)||23AWG Riser (CMR)||Plenum (CMP)||Outdoor (CMX)||Riser (CMR)||Plenum (CMP)||General (CM)|
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email email@example.com to get a shipping quote.
- High-Performance Data Communications Cable
- This Cable Is CAT5E Outdoor CABLE UV Rated For Outdoor Use
- Suitable For 350MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet And 155Mbps TP-PMD/CDDI
- Designed For Outdoor Installations UV Jacket (CMX) (UV)
- Category-5E Unshielded Twisted Pair (UTP) Cable
- 4-Pair Easily Identified Color Striped Pairs
- 24 AWG Solid Bare Copper Conductors
- Excellent Attenuation And Crosstalk Characteristics
- Exceeds EIA/TIA 568 C.2
- UL/cUL Listed
- ETL Verified
- RoHS Compliant
- Sequential Length Markings on Jacket
- Supplied in a 1000' Pull Box with large payouts
Solid Wire: also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.
CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.
CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.
CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.
CM/CMH/CMG: CM is used for general building wiring such as residential house. CM cables are used in areas other than plenums and risers.
Cable Accessories Options
To learn more about our Category 5E Outdoor Bulk Cable please visit our product overview page. Primus Cable's CAT5E Outdoor Ethernet Cables are compatible with our:
- CAT5E Riser(CMR) Ethernet Cables
- CAT5E Patch Cables
- CAT5E Modular Plugs
- CAT5E Keystone Jacks
- Blank Patch Panels
- CAT5E Patch Panels
- Wall Plates
- Cable Management Accessories
What's in the Box
- CAT5E Outdoor Ethernet Cable, CMX Jacket, 1000ft In A Pull Box Or On A Wooden Spool
