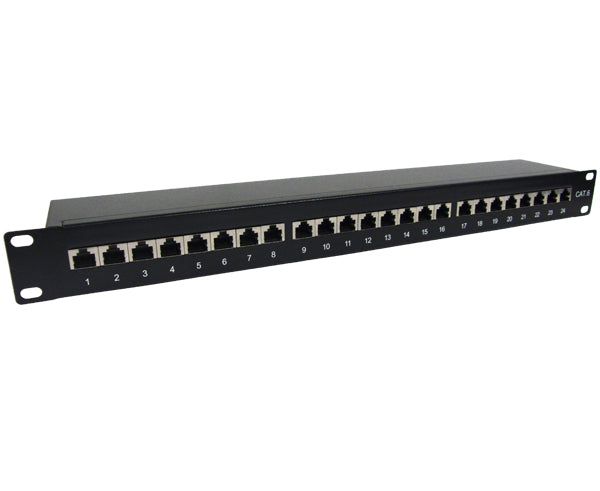

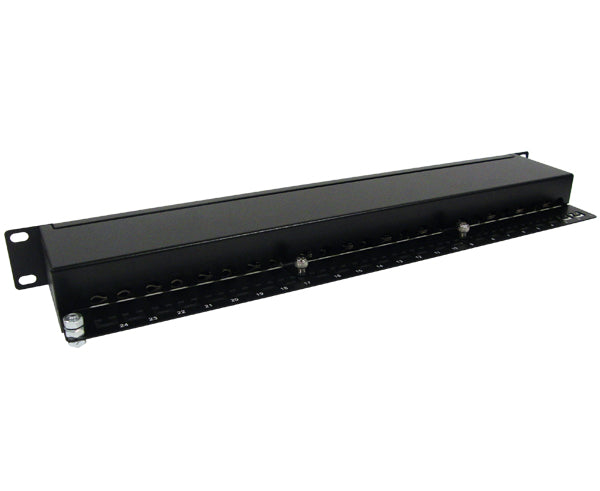

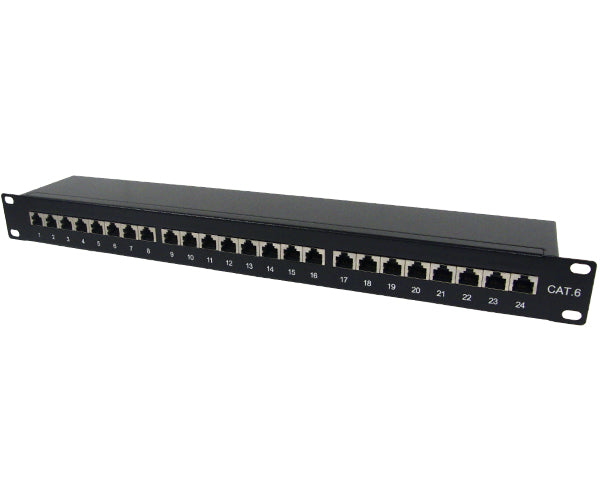

Shielded CAT6 Patch Panel, 24 Port, 1U Rack Mount

$88.99
SKU: PP2-2930/24S
UL Listed RoHS Compliant

Description

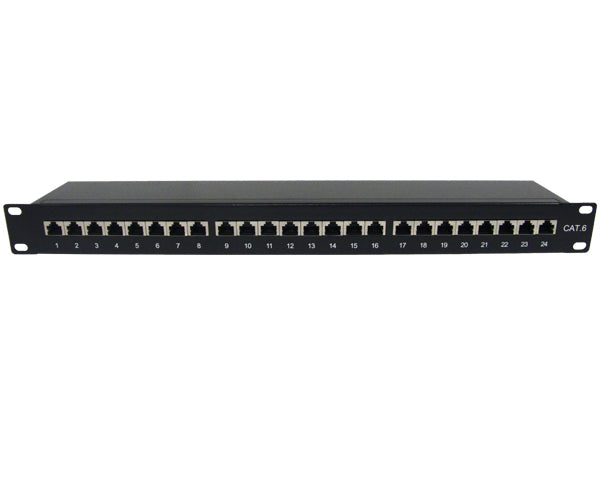

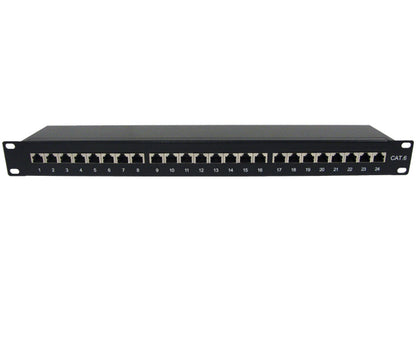

Shielded CAT6 Patch Panel 24 ports 1U Server Rack Mount

Our preloaded shielded CAT6 patch panel is perfect for protecting your high-speed network from noise and EMI (Electromagnetic interference) especially when the copper cables run near power cables. Additionally, this CAT6 patch panel has a 24 port configuration and contains flush mounted RJ45 ports. This patch panel is Power Over Ethernet (POE) compatible, meeting and exceeding industry standards, ensuring safety and maximizing the performance of your network.

Product Quality

Product quality is essential to a reliable network. Our CAT6 patch panel meets UL standards and is UL Listed. Additionally, this patch panel is RoHS compliant and also meets TIA/EIA 568A & 568B standards. The RJ45 ports mount flush against the panel's face which help eliminate cable snags and create a professional aesthetic. This CAT6 Patch Panel is not only ideal for speed and efficiency but also great for cable organization.

Durability & Strength

To ensure our CAT6 Patch Panel's durability and strength, we use 16 gauge steel with rounded edges. Our patch panel includes gold plated phosphor bronze RJ45 contacts that allow you to plug in your patch cable multiple times without diminishing signal quality.

CAT6 Network Products

To complete your CAT6 network we carry a full end to end solution including CAT6 bulk ethernet cables, CAT6 patch cables, CAT6 RJ45 modular plugs, network racks and enclosures, Ethernet switches and wall plates. We also have a large assortment of tools, testers and cable management accessories that will help make your installation fast, smooth and organized. If you have any questions, feel free to give us a call or email us.

Features

Features

  • Premium Shielded CAT6 Patch Panel
  • 24 Flush Mounted RJ45 Ports
  • Made From Solid 16 Gauge Steel With Rounded Edges
  • Suitable For 22-26 AWG Stranded And Solid CAT6 Cable
  • Supports POE
  • 19" Rack And Enclosure Mountable
  • TIA/EIA 568A And 568B Compliant
  • UL Listed
  • RoHS Compliant

Specifications

Specifications


Port Quantity 24 Ports
Length 19 Inches (482.6mm)
Height 1U (1.75 inches - 44.45 mm)
Depth 3.94 inches - 100 mm
Weight 3.77 lbs.
Panel Material Solid 16 Gauge Steel with black paint

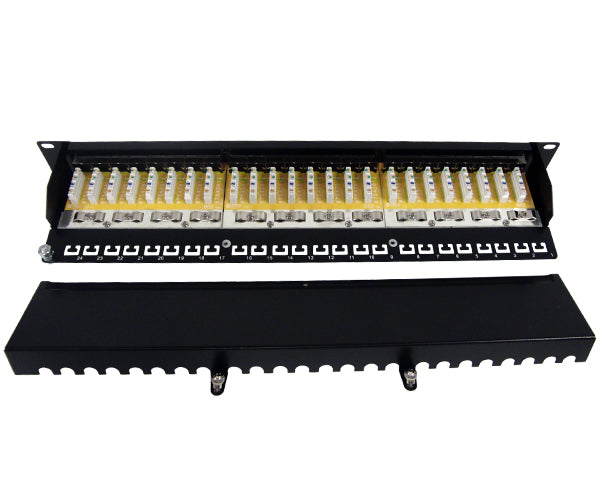

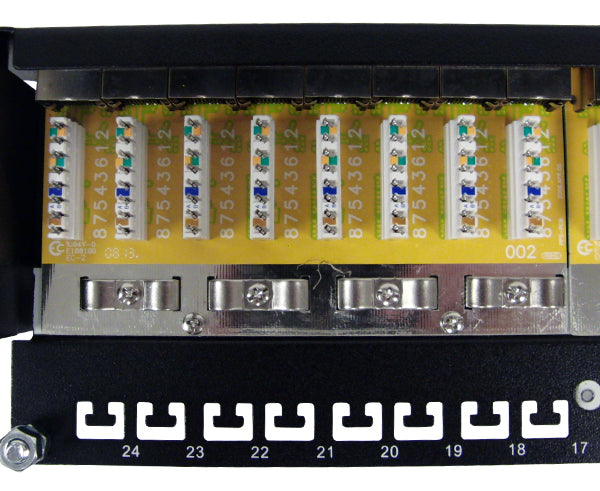

Configuration Shielded, 24 RJ45 ports with IDC-110 punch down headers
IDC Terminal Material & Finish Phosphor Bronze w/ 50 Micro-Inch Tin-Lead Plated over 50-60 Micro-Inch Nickel Plated
Ground Wire 18 AWG, 40CM long

Additional Information

Additional Information

A rack unit, U or RU is a unit of measure that describes the height of electronic equipment designed to mount within a 19-inch rack or a 23-inch rack. The following are some dimensions of rack heights that are common to computer equipment:

Rack Unit Dimensions
Half-U .875 in - 22.25 mm
1U 1.75 in - 44.45 mm
2U 3.5 in - 88.9 mm
3U 5.25 in - 133.35 mm
4U 7.0 in - 177.8 mm
5U 8.75 in - 222.25 mm
6U 10.5 in - 266.70 mm

High-Density - For networking projects where space is at a premium and efficiency is paramount, we supply CAT6 High-Density Patch Panels. Typically, these high-density patch panels feature more RJ45 ports while still adhering to the industry-standard rack sizes.These CAT6 patch panels come in both 24 and 48 port versions with flush mounted jacks. It is designed from solid 16 gauge steel with rounded edges for safety.

Wallmount - This Patch Panel is able to be mounted to a surface or wall.

Rackmount - This Patch Panel is designed to be installed in a network rack as a component of a larger network system


CAT6 Patch Panel Accessories

Maximize network uptime with our selection of CAT6 patch panels! CAT6 Ethernet patch panels allow you to organize multiple connections in one central location. This minimizes system downtime, keeps maintenance efficient, and helps secure the network. Our CAT6 patch panels are made for durability and strength, manufactured of solid 16 gauge steel.

To learn more about our CAT6 Patch Panels please visit our overview page. Our Patch Panels can be combined with a wide array of products such as:

What's in the box?

What's in the box?

  • Qty 1 - 24 Port CAT6 Shielded 1U Patch Panel

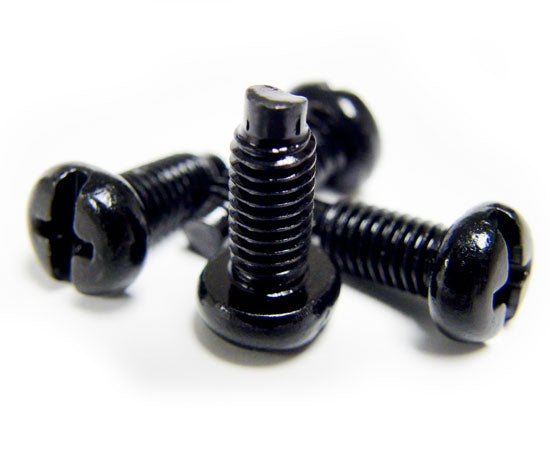

  • Qty 4 - Rack Mount Screws

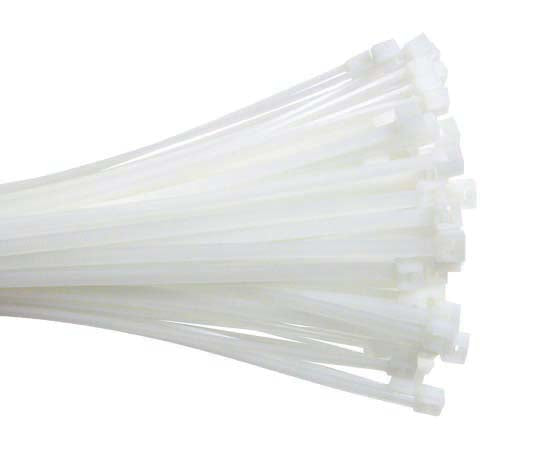

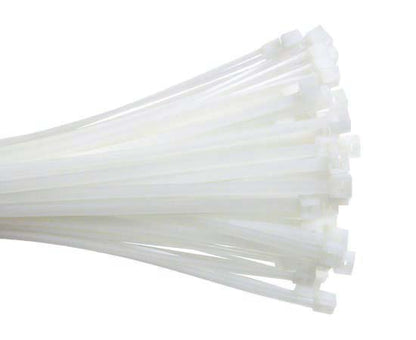

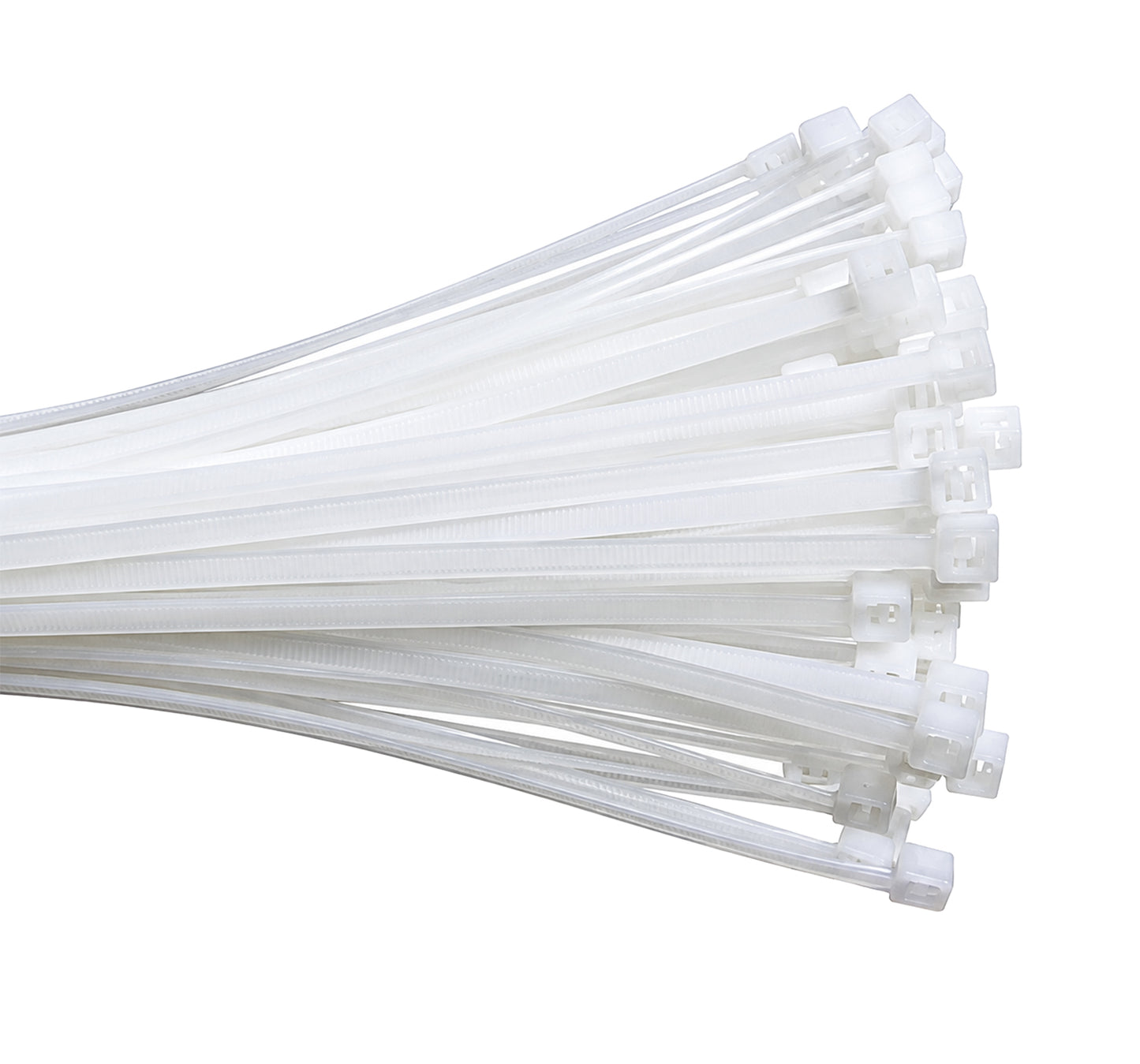

  • Qty 24 - 3" Zip Ties

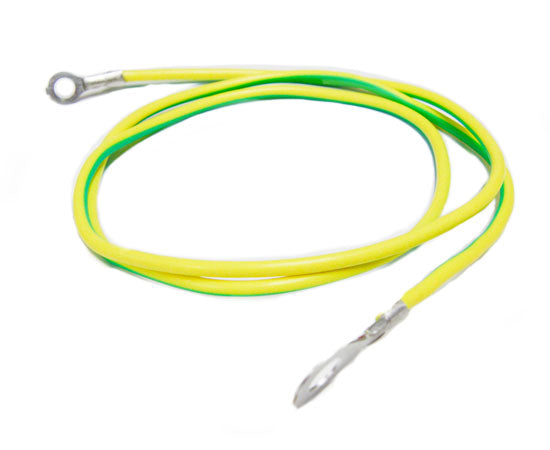

  • Qty 1 - Grounding Wire, 40 cm long
