DisplayPort Male to VGA Female Adapter

SKU: AV5-5012
Various lead times may apply to this product. Please contact us for more details.

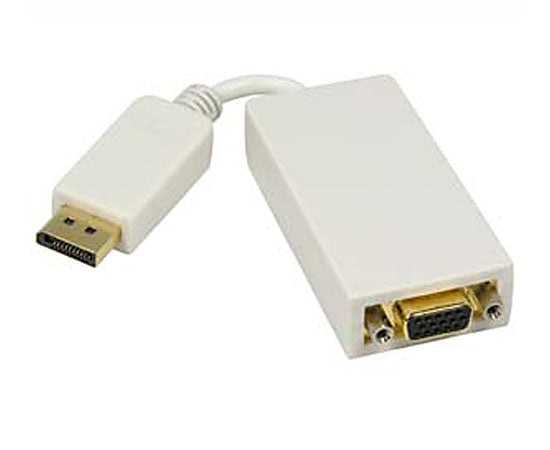

DisplayPort Male to VGA Female Adapter

The DisplayPort VGA adapter enable you to connect any VGA interface embedded device (Monitor, Projector, etc.) with a DisplayPort interface (Desktop, Laptop).


  • Cable length: 1 1/2"
  • Gold plated connector
  • Housing and cable color : White
  • Specifications

    • Compliance with DisplayPort Specification V1.1a at 1.62/2.7Gbps data rate (Low bit rate/High bit rate)
    • Protocol: Support DPCD Rev.1.1 & Support HDCP 1.3 with HDCP key embedded
    • Resolution: up to 1920X1200 / 1080p
    • Connector DP male to VGA female
    • Total Length: 7" (connector edge to edge)
    • Connector housing dimensions:
      • VGA side: 3 (L) x 1-1/2 (W) x 3/4" (H)
      • DP side: 1-7/8 (L) x 3/4 (W) x 1/2" (H)

    What's In the Box

    Qty 1 - Display Port Male to VGA Female Adapter
