Electrical Box, 4" Steel Square with Wall Bracket - EoL

Call for Pricing
SKU: TD6500
UL Listed RoHS Compliant

This product has a minimum order quantity that may apply

Description

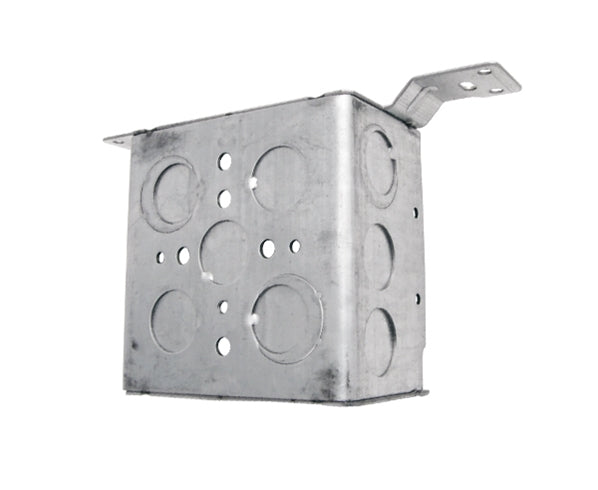

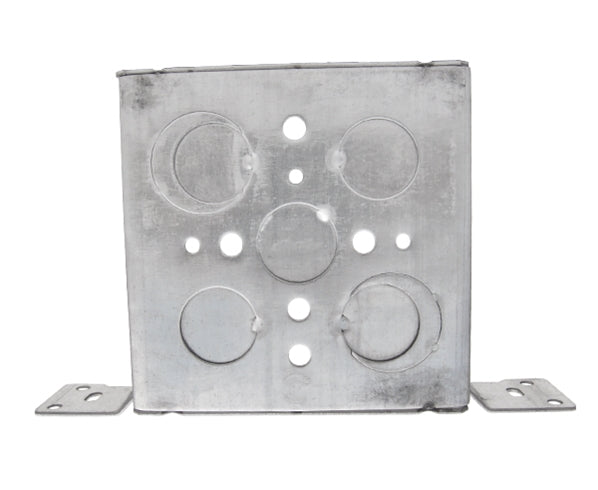

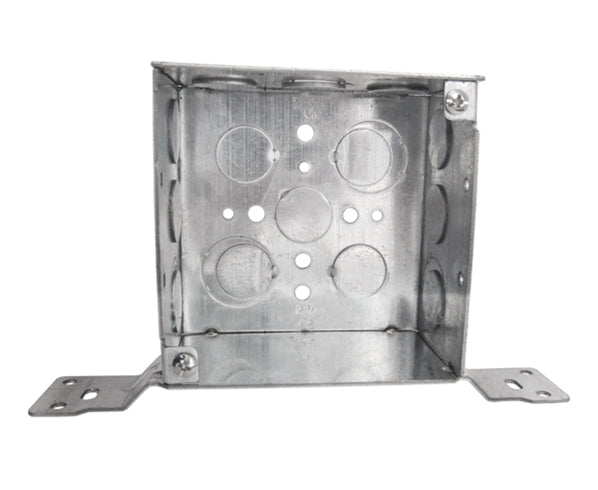

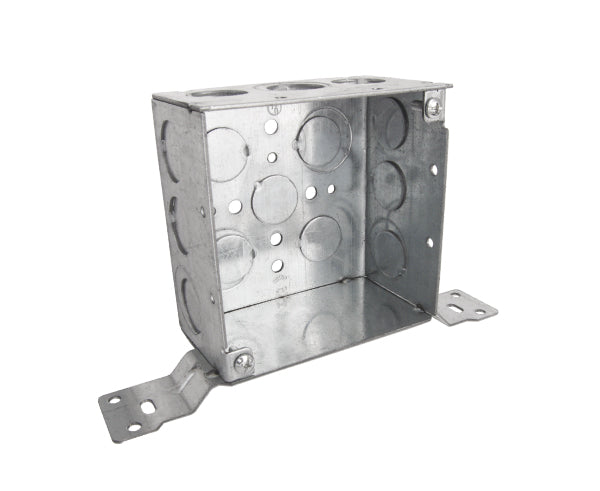

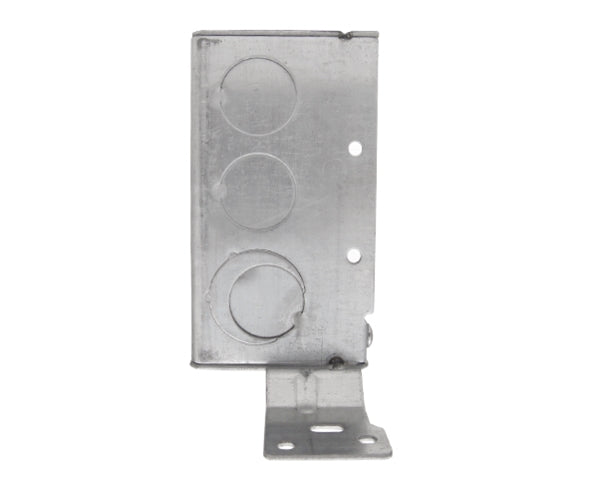

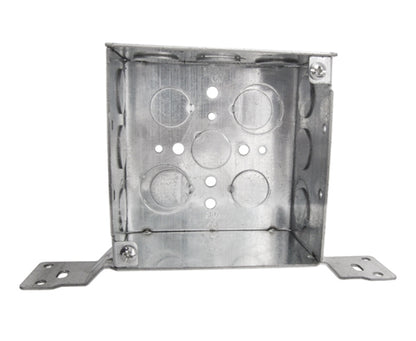

Electrical Box 4" - Steel With Wall Mount Bracket

Our 4" Square Electrical Boxes are 2 1/8" deep and have 31.5 cubic capacity for terminating wires. This product is designed with a raised ground to emboss with installed 10/32 ground screws. This junction box can be installed in walls or ceilings for lighting fixtures, switches, receptacles, and other outlet devices. To ensure we provide our customers with the best product, this product is UL listed and ROHS compliant.

Features

Features

  • Available in multiple KO sizes, with or without concentric KOs and raised ground emboss with installed 10/32 ground screw where noted
  • Manufactured using Galvanized Steel
  • Wall Brackets allow for these Electrical boxes to be installed in walls or ceilings
  • 2-1/8" deep boxes offer extra cubic capacity
  • RoHS Compliant
  • UL Listed

Specifications

Specifications

Box Dimensions 4 x 4 inch
Box Depth 2-1/8 inch
Eccentric KO Size 1/2inch & 3/4 inch
Cubic Capacity 31.5 cubic inch
Material Galvanized Steel

Additional Information

Additional Information

This product is great for many applications, here are a few listed below:

  • 4" square welded junction boxes can be installed in walls or ceilings for lighting fixtures, switches, receptacles, or other outlet devices
  • Square boxes are used to bring power to a number of electrical devices where multiple conductor runs are split in two or more directions
  • 2-1/8" deep boxes offer extra cubic capacity

What's in the box?

What's in the box?

  • Qty 1 - Electrical Box - Steel, 4" Square w/ Wall Brackets
  • Qty 2 - 10/32 Ground Screws
