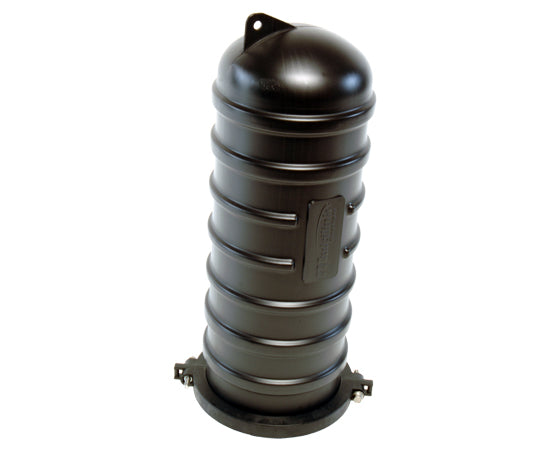

Fiber Dome Closure, 192 Single Fusion Splice Capacity, Includes Splice Tray

$296.99
SKU: FB23-4382-192DE
Various lead times may apply to this product. Please contact us for more details.
Made in USA

One (1) splice tray included. Additional FB25-4000STP24 splice trays sold separately.

Description

Fiber Dome Closure, 192 Splice Capacity

Compatible with Splice Tray FB25-4000STP24

The FB23-4382-192DE dome splice closure is designed for above or below grade applications and supports up to 6 or more cable entries. The closure has a unique gasketed Split End Plate system that allows for midaccessing cable up to 1.125" in diameter.

Branch or lateral cables can be added to any one of four compression seal entry ports. Multiple cables (up to 6) can also be installed utilizing multi-port grommets available for the closure. The closure requires no special tools, adhesives, or mastics for installation.

Integrated slack storage and hinged trays allow for maximum storage and access of fiber and fiber bundles. Splice capacity of 192 single fusion splices using a 24 fiber splice tray. Dome includes one 24 fiber splice tray, with the capacity to hold four splice trays total.

Features

  • Completely sealed with compression seal technology.
  • Ease in installation requiring no special tools.
  • GR-771 and CATV industry compliant.
  • Mid-access design for installation over existing cables without disturbing a working cable.
  • Can be used for above or below grade applications.
  • Capacity for 8 splice trays.
  • RUS Listed.

Specifications

Capacity

Splice Trays (8) 12 Fiber Splice Trays, (1) Included

Cable Entry

(2) Express / Feeder
Max. Diameter - 1.12" (28.5mm) | Min. Diameter - 0.375" (9.5mm)
(4) Branch / Lateral
Max. Diameter - 0.98" (24.9mm) | Min. Diameter - 0.30" (7.62mm)

Dimensions

Exterior Closure Diameter 10"
Exterior Closure Length 23.75"

Physical Properties

Weight 13.5 lbs
Material
  • Dome: Polyethylene
  • End Plates: Glass Filled Polypropylene
  • V-Band: Polypropylene
