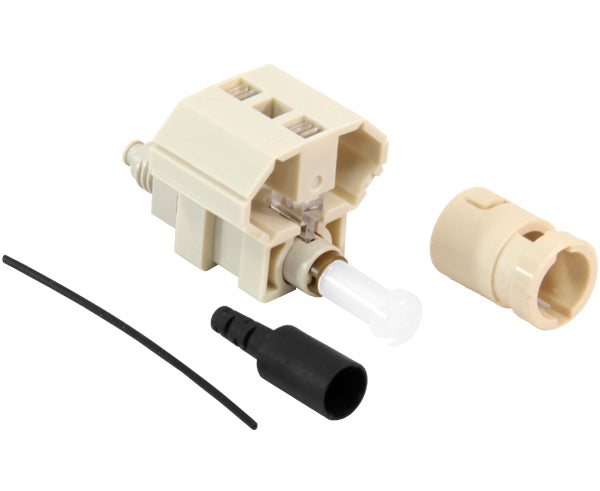

Fiber Optic FAST Connector, Pre-Polished, Multimode, 62.5/125 OM1, ST, 6 Pack
Comes in a pack of 6 connectors.
Comparable to OCC part number FXC-ST6-6 and Corning part number 95-000-51.
These products are all Made to Order
Which means they are non-cancelable and non-refundable
Description
AFL FASTConnect™ Field-Installable Connectors, ST Multimode 62.5/125 OM1, 6 Pack
FASTConnect™ field-installable connectors are factory pre-polished connectors that eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub, and a proprietary index-matching gel combine to offer an immediate low-loss termination to either single-mode or multimode optical fibers.
FASTConnect™ connectors are compatible with 250um and 900um optical fibers, as well as 900um, 2mm and 3mm cordage. All primary fiber types are supported, and each connector is color-coded per industry-standard requirements to aid in identification during and after installation.
A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFL to provide a "pass/fail" signal once physical contact is achieved.
900um boots are included and we also offer 2mm fiber boots and 3mm fiber boots that are sold separately.
Features
Features
- Pre-stubbed, factory-polished ferrule
- No epoxy required
- Precision mechanical alignment insures low loss
- Fiber can be reseated
- 900um boot provided with each connector. 2mm and 3mm boots are also available separately.
- VFI can be used to confirm fiber is installed properly
- Meets TIA/EIA 568A performance requirements
- Meets TIA/EIA 604 (FOCIS) connector interface requirements
Applications
Applications
- Premise environments
- Connections at the desk for LAN environments
- Patch panels
- Direct equipment termination
- Fiber to the Subscriber (FTTx) applications
- Repair and replacement requirements
- Equipment test leads
Specifications
Specifications
| Insertion Loss (Average) | 0.1 dB |
| Insertion Loss (Maximum) | 0.5 dB |
| Return Loss at Room Temperature (Average) | -25 dB |
| Return Loss at Room Temperature (Maximum) | -20 dB |
| Operating Temperature | -40°C to +75°C |
Additional Information
Additional Information
*2mm and 3mm boots are not included
