Fiber Optic FUSE Connector, Splice-on, Single Mode, 9/125, LC, 6 Pack

by AFL
$82.99
SKU: FUSE-LC9SMU-6
Various lead times may apply to this product. Please contact us for more details.

Comes in a pack of 6 connectors.

Comparable to Corning part number SOC-LCU-900-SM.


Description

AFL FUSEConnect® Splice-On Connectors, LC Single Mode 9/125, 6 Pack

The FUSEConnect® fusion-spliced, field-installable connectors are uniquely designed and feature only four to five components. The factory pre-polished ferrule eliminates the need for polishing, adhesives, and crimping in the field, which minimizes the potential for operator error and expensive connector scrap.

FUSEConnect® connectors utilize a fusion splicer to terminate the connector in the field, addressing return loss concerns present in analog optical networks. This advanced process yields true APC performance for SC/APC and LC/APC configurations, and is compliant to GR-326-CORE. FUSEConnect® is compatible with Fujikura fusion splicers and most other fiber holder-based fusion splicing platforms.

900um boots are included and we also offer 2mm fiber boots and 3mm fiber boots that are sold separately.

Don't forget your FUSEConnect® Tool Kit which includes standard fiber preparation tools and cleaning supplies as well as a FUSEConnect® accessory kit and cord splitter tool. The cord splitter tool is uniquely designed to open the cordage of 2 mm and 3 mm cable allowing the termination of the ST and FC type connectors on simplex cordage.

Features

  • Field installable
  • No adhesives, crimping or polishing
  • True APC performance
  • MM compliant to TIA/EIA568C.3
  • Compatible with most fusion splicers

Applications

  • Connectorization in:
    • RF-overlay FTTP networks
    • Cable TV backbone networks
    • Outside plant
    • FTTD
    • MDU FTTP Cabling
  • Central office connector replacement
  • Data center installation

Specifications

Insertion Loss (Average): 0.15 dB
Insertion Loss (Maximum): 0.3 dB
Return Loss: ≤-55 dB
Operating Temperature: -40°C to +75°C

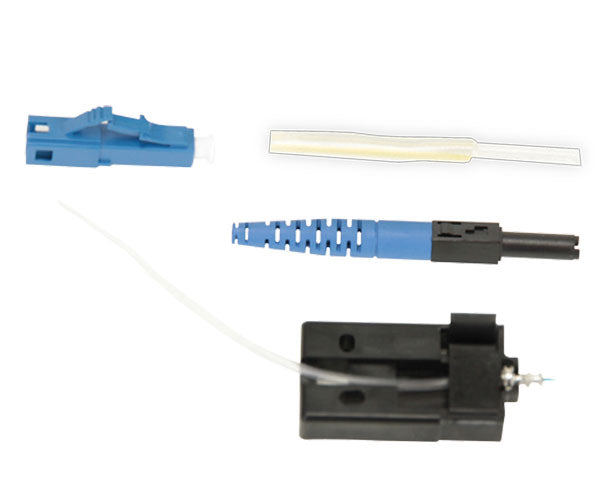

    Whats in the Box

    • 6 - Boots
    • 6 - Connector Housings
    • 6 - Protective Sleeves
    • 6 - Ferrule unit Holders
    • 6 - Connector Bodys
    • 6 - Dust Cap

    Installing the AFL FuseConnect® Fusion Splice Field-Terminated Connectors - LC
