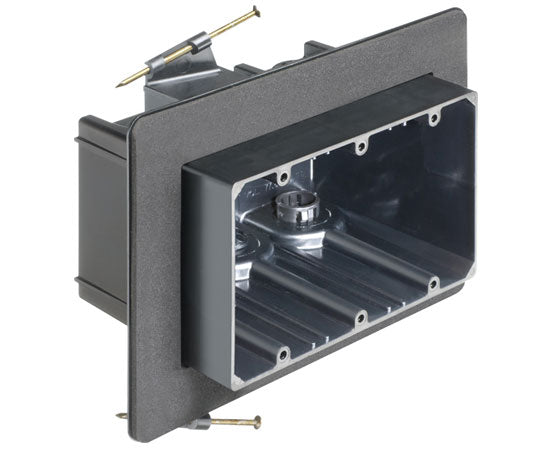

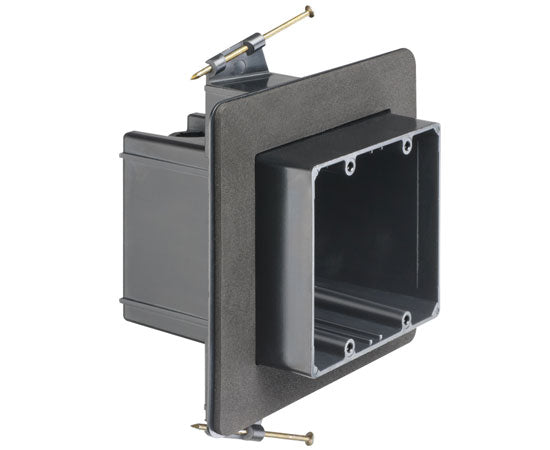

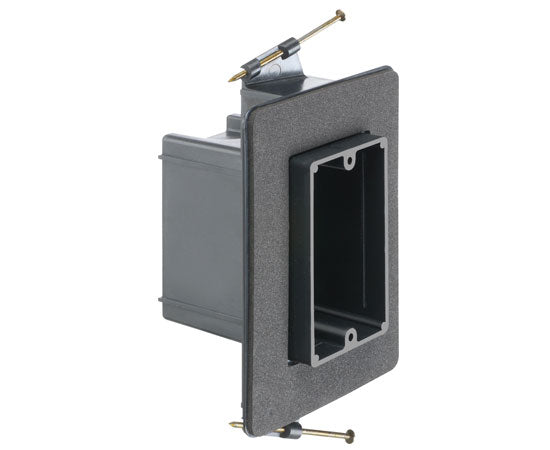

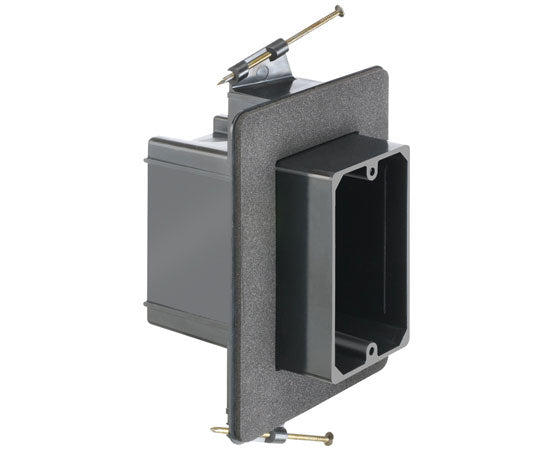

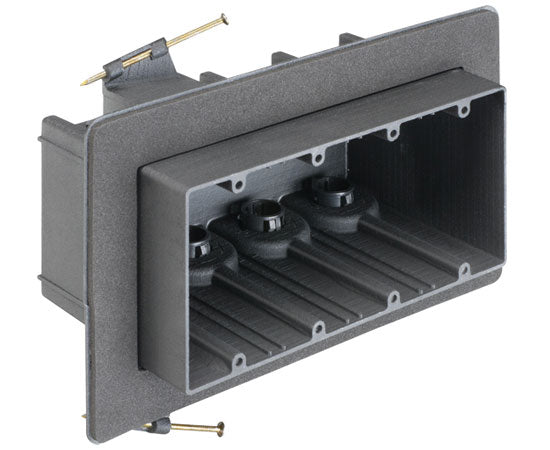

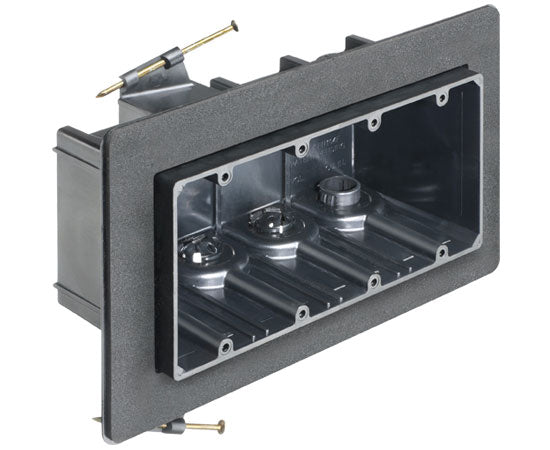

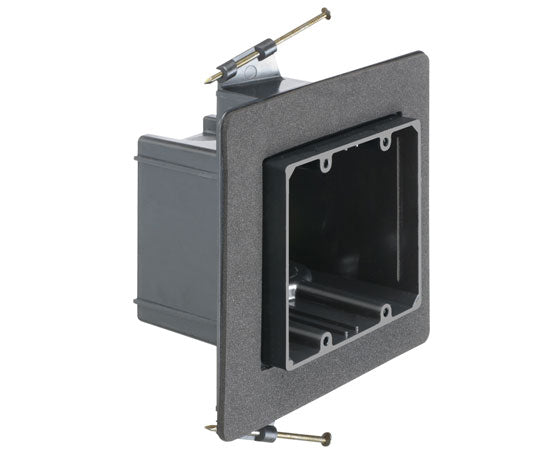

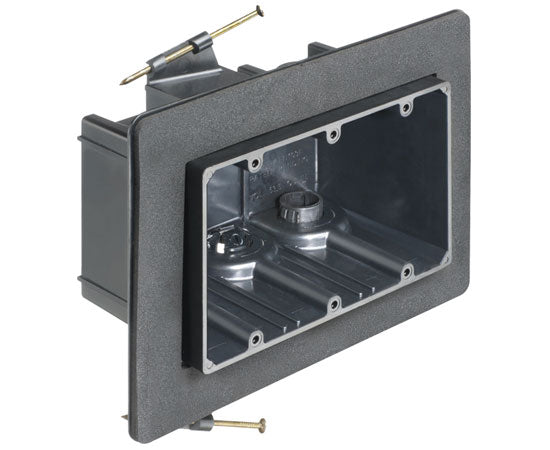

Nail-On Vapor Barrier Box - Wall Outlet
Our Nail-On Vapor Barrier Box features built-in flanges and gaskets that form a protective barrier against air infiltration, enabling installers to meet local codes where required. The vapor barrier's benefit can be noticed in applications where temperate air, such as warm or cool, passes through wall outlet installation areas. The Gasket helps seal the installation area to reduce air infiltration.
Features
Features
- Non-metallic, non-conductive
- Available in single-gang, two-gang, three-gang, and four-gang styles
- Ships with mounting screws or captive nails
- Includes gasket material for sealing knockouts

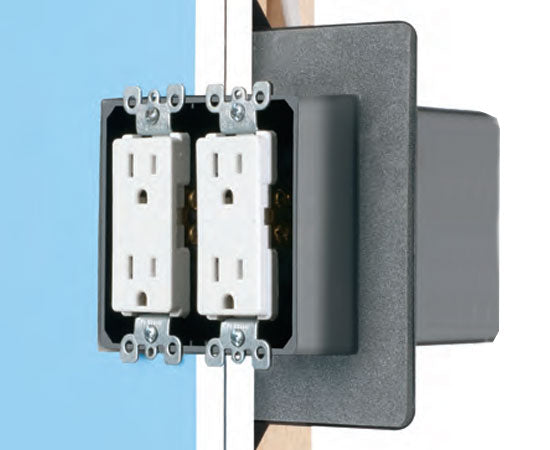

- For new construction with single or double drywall (two-hour fire rating)
- UL Listed in the US and Canada
Specifications
Specifications
| PRODUCT NUMBER | FN101F | FN101FD | FN102F | FN102FD | FN103F | FN103FD | FN104F | FN104FD |
| Width | 4.500" | 4.500" | 6.312" | 6.312" | 8.124" | 8.124" | 9.936" | 9.936" |
| Height | 7.664" | 7.664" | 7.664" | 7.664" | 7.664" | 7.664" | 7.664" | 7.664" |
| Weight | 0.316 lbs | 0.367 lbs | 0.416 lbs | 0.488 lbs | 0.551 lbs | 0.634 lbs | 0.668 lbs | 0.772 lbs |
| Color | Black | Black | Black | Black | Black | Black | Black | Black |
| Material | Plastic | Plastic | Plastic | Plastic | Plastic | Plastic | Plastic | Plastic |
| UPC | 018997151308 | 018997151315 | 018997151322 | 018997151339 | 018997151346 | 018997151353 | 018997151360 | 018997151377 |
| Line Drawing | FN101F_Line Drawing | FN101FD_Line Drawing | FN102F_Line Drawing | FN102FD_Line Drawing | FN103F_Line Drawing | FN103FD_Line Drawing | FN104F_Line Drawing | FN104FD_Line Drawing |
What's In The Box
What's In The Box
| PRODUCT NUMBER |
FN101F FN101FD |
FN102F FN102FD |
FN103F FN103FD |
FN104F FN104FD |
| Comes With | (1) Single-gang One Box™ Vapor Box (2) NM94 Cable Connectors (2) Gaskets for knockouts (1) Flange Gasket |
(2) NM94 Cable Connectors (2) NM900 Snap-In Blanks (4) Gaskets for knockouts (1) Flange Gasket (1) 2-Gang One Box™ Vapor Box |
(3) NM94 Cable Connectors (3) NM900 Snap-In Blanks (6) Gaskets for knockouts (1) Flange Gasket (1) 3-Gang One Box™ Vapor Box |
(4) NM94 Cable Connectors (4) NM900 Snap-In Blanks (8) Gaskets for knockouts (1) Flange Gasket (1) 4-Gang One Box™ Vapor Box |
