Description

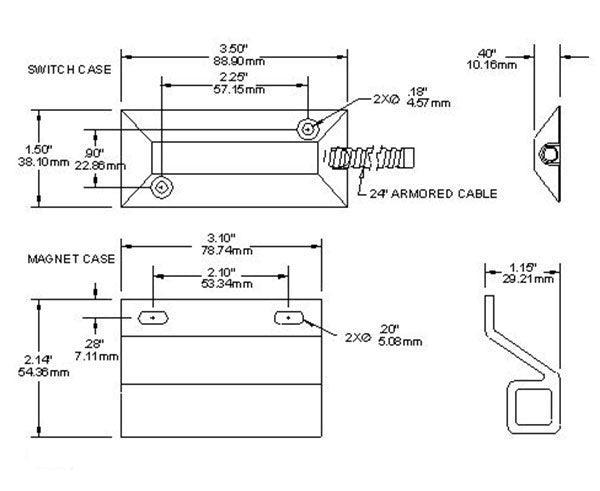

Miniature Overhead Door Floor Mount Magnetic Switch Set
The Overhead Door Contact Miniature Floor Mount Switch Set comprises a low-profile reed switch crafted from durable cast aluminum. It comes in closed loop, open loop, open/closed SPDT, or DPDT configurations. With a wide working gap of up to 2 1/2" (three feet for DPDT version), it includes heavy-duty armored cable for added durability.
The armored cable ensures protection from the elements, while the universal magnet allows for flexible mounting angles in challenging installations. Installation requires a 1/4" masonry bit for lead anchor installation.
Features
Features
- Miniature floor mount
- Available in closed loop, open loop, SPDT or DPDT
- 24" armored cable (DPDT version comes with 36" cable)
- Universal magnet for flexibility in mounting
- Cast aluminum casings for harsh environments
- Plated contacts resist sticking or freezing
- Up to 2 1/2" gap for loose overheads
- Reed switch for reliability
- Mounting hardware included
- Hermetically sealed
- UL and ULC approved
- Made in U.S.A.
- Low cost
Specifications
Specifications
Technical Specs: Closed Loop |
|||
| Loop Type: | Closed | ||
| Electrical Config: | N/O | ||
| Reed Form: | A | ||
| Maximum Intitial Contact Resistance (Ω): | .150 | ||
| Maximum Contact Rating (W): | 10 | ||
| Maximum Switching Voltage (VDC): | 200 | ||
| Maximum Switching Current (A): | .500 | ||
Technical Specs: Open Loop |
|||
| Loop Type: | Open | ||
| Electrical Config: | N/C | ||
| Reed Form: | B | ||
| Maximum Intitial Contact Resistance (Ω): | .140 | ||
| Maximum Contact Rating (W): | 5 | ||
| Maximum Switching Voltage (VDC): | 175 | ||
| Maximum Switching Current (A): | .250 | ||
Technical Specs: Open/Closed SPDT |
|||
| Loop Type: | Open/Closed | ||
| Electrical Config: | SPDT | ||
| Reed Form: | C | ||
| Maximum Intitial Contact Resistance (Ω): | .140 | ||
| Maximum Contact Rating (W): | 5 | ||
| Maximum Switching Voltage (VDC): | 175 | ||
| Maximum Switching Current (A): | .250 | ||
Technical Specs: Open/Closed DPDT |
|||
| Loop Type: | |||
| Electrical Config: | DPDT | ||
| Reed Form: | Cx2 | ||
| Maximum Intitial Contact Resistance (Ω): | .140 | ||
| Maximum Contact Rating (W): | 5 | ||
| Maximum Switching Voltage (VDC): | 175 | ||
| Maximum Switching Current (A): | .250 | ||
What's in the Box
What's in the Box
- (1) - Miniature Overhead Door Floor Mount Switch Set
- (1) - Two Feet of Armored Cable
- (1) - Mounting Hardware
