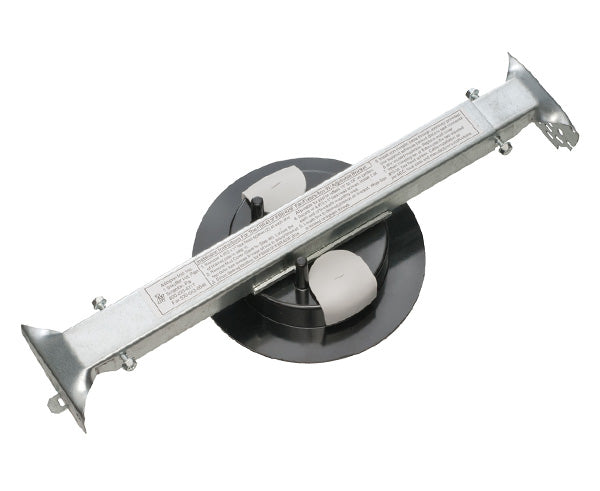

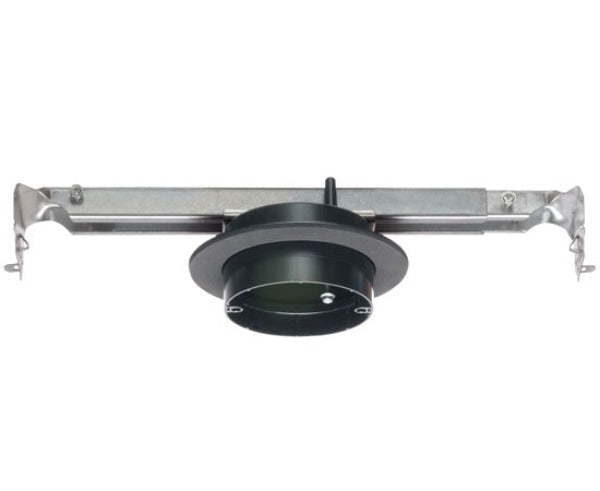

Plastic Vapor Box with Adjustable Steel Bracket for Fan/Fixtures - For New Construction
by Arlington
$27.90
SKU: FBR415F
Some items may require minimum order quantities which can be
changed in your shopping cart.
Description
Vapor Box for Fans, Fixtures, Devices w/ Bracket

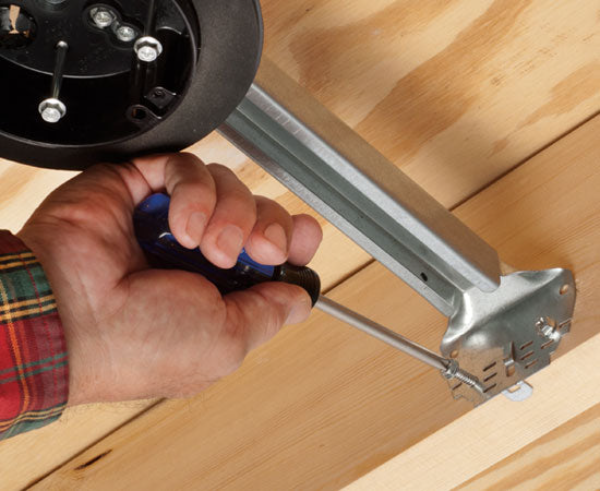

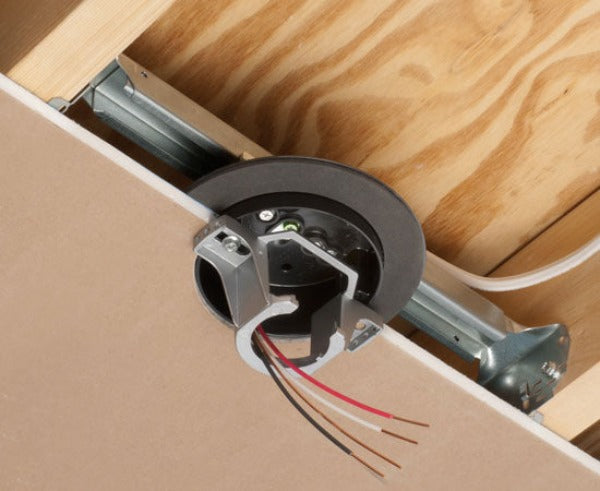

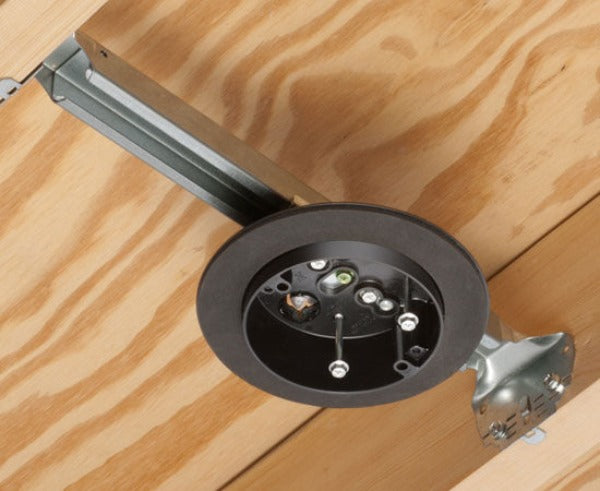

Our Vapor Boxes are designed for mounting ceiling fans, fixtures, and devices in new construction. This product has built-in flanges with gaskets attached to form a protective barrier against air infiltration, enabling installers to meet local codes where necessary. 18.3 cu. in. 70lb fan rated at 24" on center. 110lb fan rated at 16" on center, 90lb rated fixture on 24" on center. 150lb at 16" fixture rated. Ensuring fast, easy, and secure installation in new construction, our vapor boxes mount to wood or steel joists with nails or screws.
This product is designed for single drywall application.
Features
Features
- Non-metallic, non-conductive box, with fully adjustable steel bracket
- Position box anywhere along bracket
- Captive installation screws, mud cover, NM cable connector, additional gasket material for knockouts
- UL Listed in US and Canada
Specifications
Specifications
Physical Information |
|
|---|---|
| Width | 6.250" |
| Height | 2.723" |
| Weight | 1.660 lbs |
| Color | Black |
| Material | Plastic, Steel |
| UPC | 018997722041 |
Technical Information |
|
|---|---|
| Cubic Inches | 18.3 |
| Load Rating | UL Rated at 24" o.c.: 70lb Fan; 90lb Fixture UL Rated at 16" o.c.: 110lb Fan; 150lb Fixture CSA Rated: 50lb Fan; 50lb Fixture |
| Usage | Protects Against Air Infiltration |
What's In The Box
What's In The Box
- Qty 2 - NM94 Cable Connectors
- Qty 1 - Mud Cover
- Qty 2 - Gaskets for knockouts
- Qty 1 - Flange Gasket
- Qty 1 - Box with flange
- Qty 1 - Adjustable steel bracket
- Qty 4 - #12 x 1" Long Screws
- Qty 2 - #10 x 2-1/2" Long Screws
