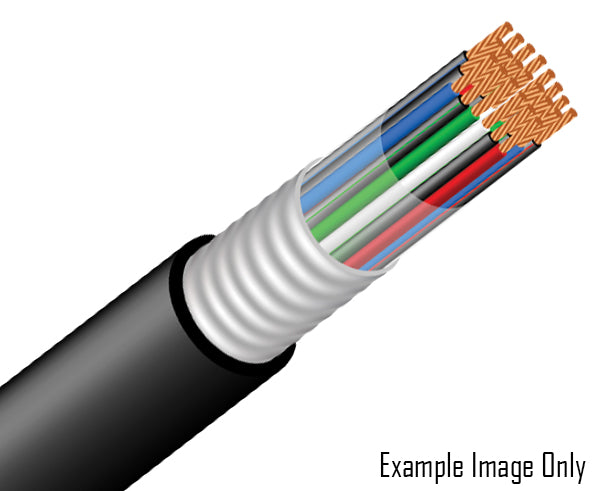

RDUP (RUS) PE-89 AL - 900 Pair, 24 AWG Filled Foam Skin Cable 1250ft Black
Core Construction: |
|
| Conductors: | Solid, annealed copper; sizes 19, 221 and 24 AWG |
| Insulation: | Dual insulation consisting of an inner layer of foamed polyolefin surrounded by a solid polyolefin skin, color coded in accordance with telephone industry standards. |
| Twisted Pairs: | Insulated conductors are twisted into pairs with varying lay lengths to minimize crosstalk. |
| Core Assembly: |
25 pairs and less: pairs are assembled together in a single group. More than 25 pairs: pairs are arranged in groups, each group having a color coded unit binder. |
| Filling Compound: | The entire core assembly in completely filled with ETPR compound, filling the interstices between the pairs and under the core tape. |
| Core Wrap: | Non-hygroscopic dielectric tape applied longitudinally with an overlap. |
Sheath: |
|
| Aluminum Shield: |
Corrugated, copolymer-coated, 0.008" aluminum tape applied longitudinally with an overlap. The sheath interfaces are flooded with an adhesive water-blocking compound. |
| Jacket: | Black, linear low density polethylene |
Application(s): |
Intended for duct and direct buried installations where protection against water and moisture entry is required and may also be installed aerially. |
Compliance: |
Rural Development Utility Program (RDUP) 7CFR 1755.890 (RUS PE-89) RoHS Compliant (effective 1/1/10) |
Packaging: |
Standard lengths are shipped on non-returnable wood reels. Non-standard packaging is available upon request. |
Nomial Cable Data: |
|
| Pairs: | 900 |
| Size: | 24 AWG. |
| O.D. (Inches): | 2.22 |
| Weight (lb/MFT): | 3390 |
| Standard Length (Feet): | 1250 Feet |
