CAT6 Former Part Number: CN1-016-8CUL
Description

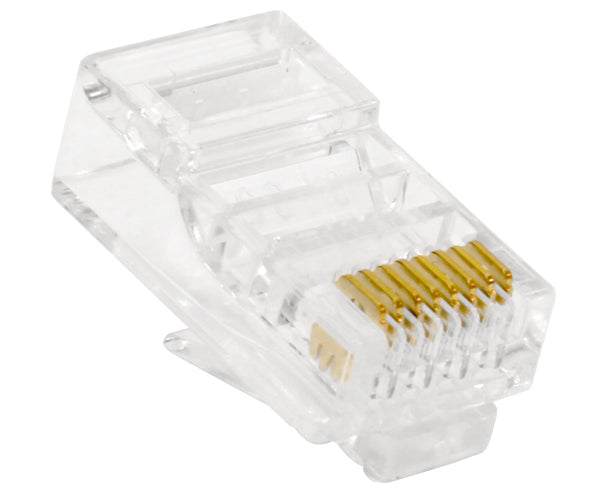

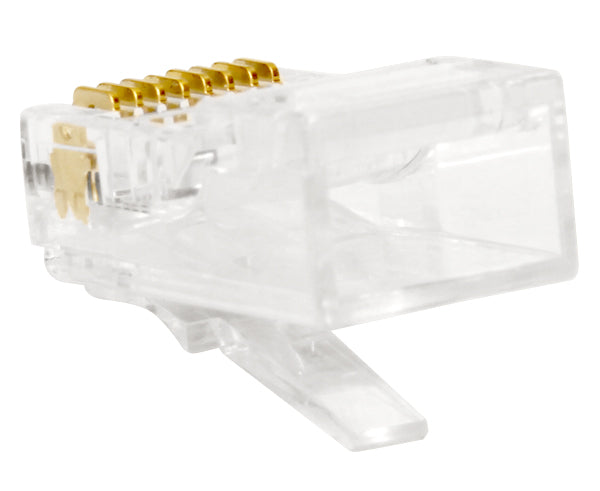

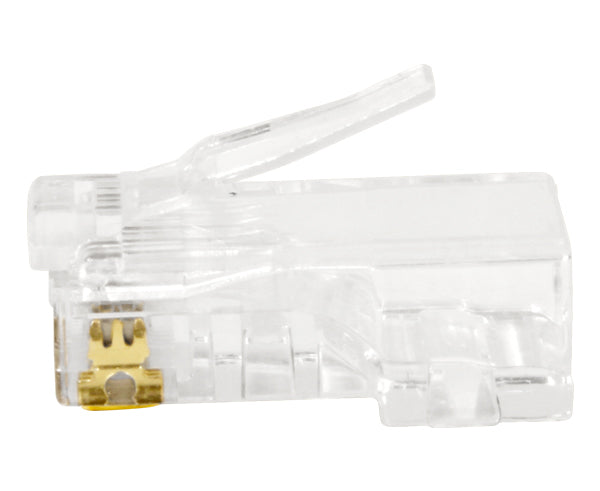

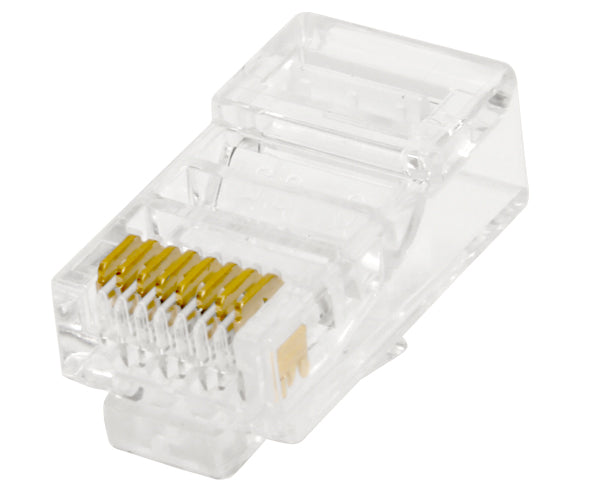

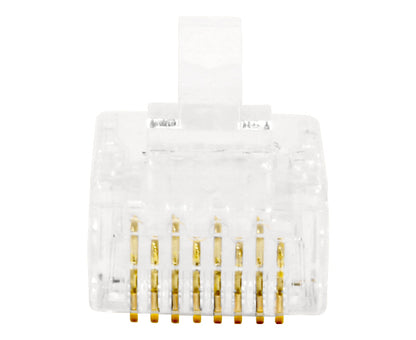

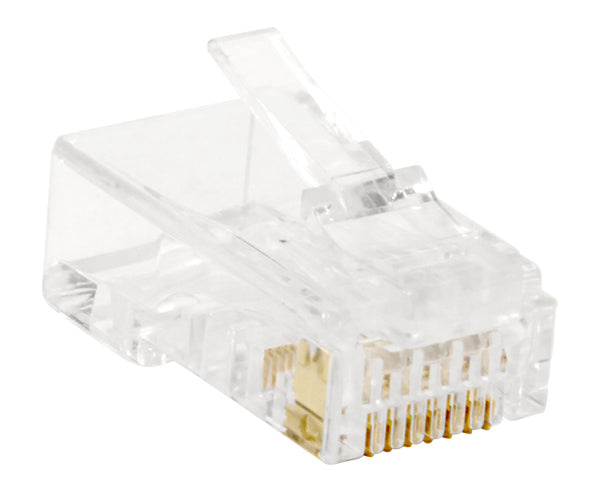

CAT6 Unshielded RJ45 Connector
Choose the Right RJ45 Connector
We believe making great networking products is the key to building a great network. We hold our CAT6 RJ45 connectors to high standards with our customer and their network in mind. Even with something as small as a RJ45 modular plug, we get it reliable and blazing fast.
These RJ45 connectors are gold plated and work with solid and stranded cable. They have 8 pins and 8 conductors (8p8c) and are designed with CAT6 Conductor size in mind. The operating ambient temperature of this plug is -40°C - 70°C.

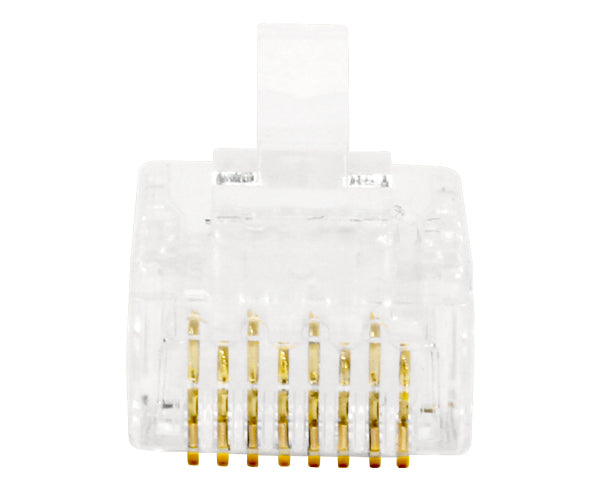

Our Modular plugs have a staggered alignment to better fit these conductors while also separating them which provides less interference.
Looking For RJ45 Accessories?
Please consider us for any of your other networking needs. We've got bulk cable, many styles of keystone jacks, and other items. Keep in mind, you're going to need a crimping tool, and we've got em. Thank You.
Features
Features
- 50 micro-inch gold plated contacts
- Works on stranded or solid cables
- Transparent housing for easy conductor alignment
- 8 pins x 8 conductors (8p8c)
- Fits 23 - 26 AWG cable
- Operating Ambient Temperature: -40°C - 70°C
- Fits an insulation diameter of 0.96mm - 1.02mm
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| ELECTRICAL SPECIFICATIONS | |
| UL Applications | 250 Volts AC Max @ 2 AMPS |
| Dielectric Withstanding Voltage | 1000 Volts AC (60 Sec.) |
| Insulation Resistance | 500 MΩ |
| Contact Resistance | 20mΩ Max |
| MECHANICAL SPECIFICATIONS | |
| Strain Relief | 20 Pound Min. |
| Durability | 1200 Mating Cycles |
| Operating Temperature Range | -40°C ~ 70°C |
| PHYSICAL CHARACTERISTICS | |
| Housing | Polycarbonate, UL94V-0 or UL94V-2 |
| Color | Transparent |
| Contact Blade | Copper Alloy |
| Conductor Compatibility | Stranded & Solid (23AWG ~ 26AWG) |
| Wire Insulation OD | Ø 0.96mm ~ Ø 1.02mm |
| Gold Plating | 50µ” |
| Shielded Shell | Copper Alloy |
Additional Information
RJ45 Termination Guide: Step by Step Walkthrough
What’s In The Box
What’s In The Box

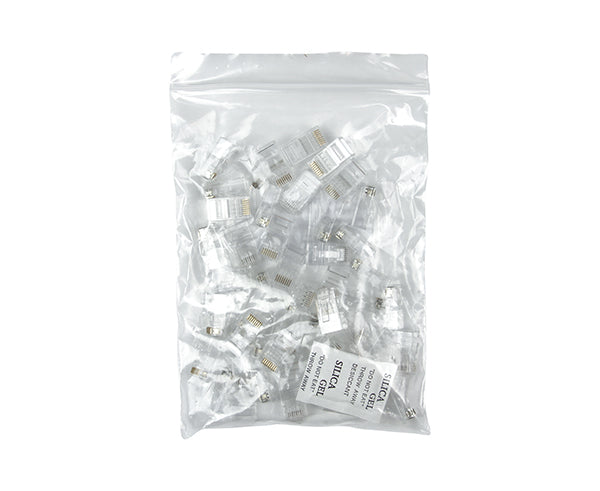

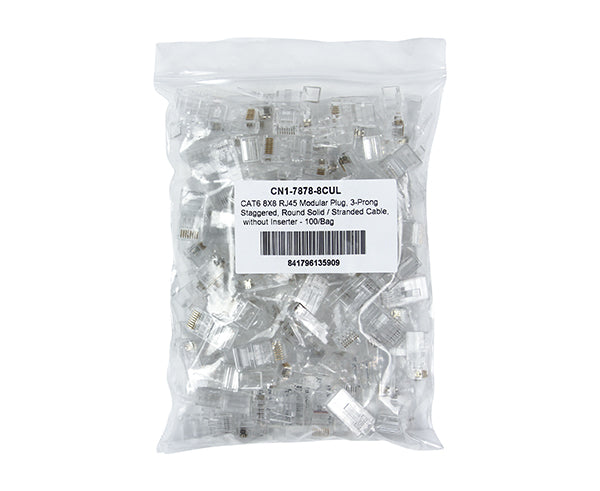

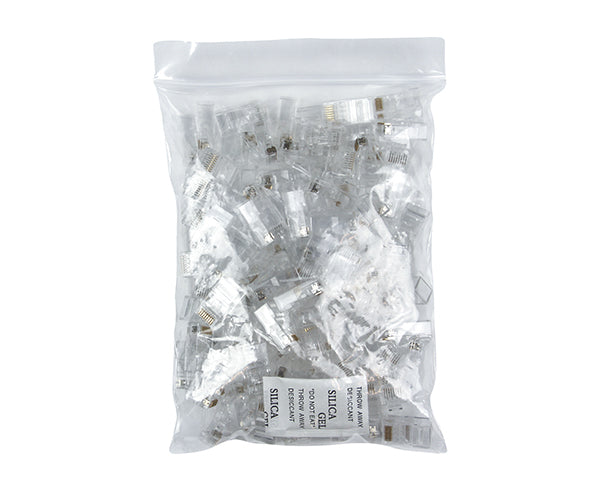

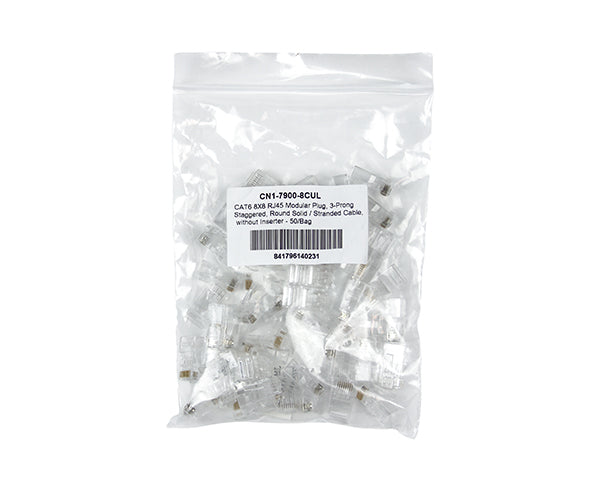

- Qty 1 - RJ45 CAT6 Connectors (25, 50, or 100 pack)
