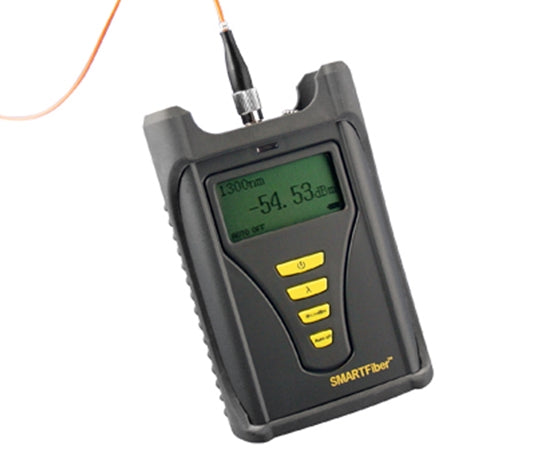

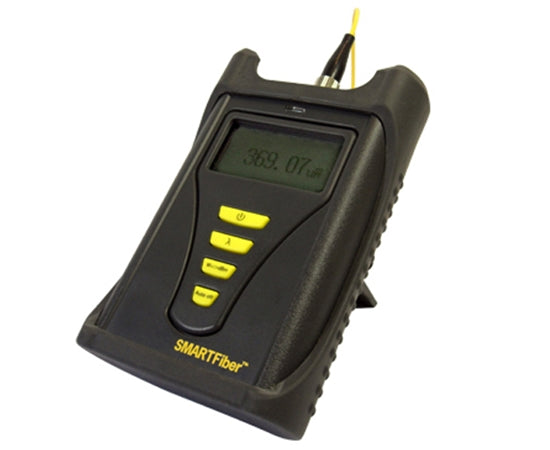

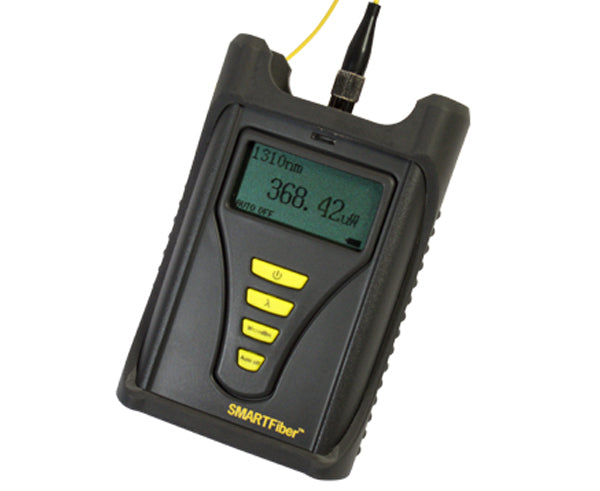

SMART Fiber - Fiber Optic Power Meter for 850-1550 Wavelengths with FC/ST/SC Adapters

$325.99
SKU: TL4-4339
Various lead times may apply to this product. Please contact us for more details.

This power meter requires a single mode light source or multimode light source.


Description

Fiber Optic Power Meter for Wavelengths 850/1300/1310/1550

The standard SMARTFiber with four wavelengths is an easy to use and lightweight fiber optic power meter that measures the power of light transmitting from an optical fiber.

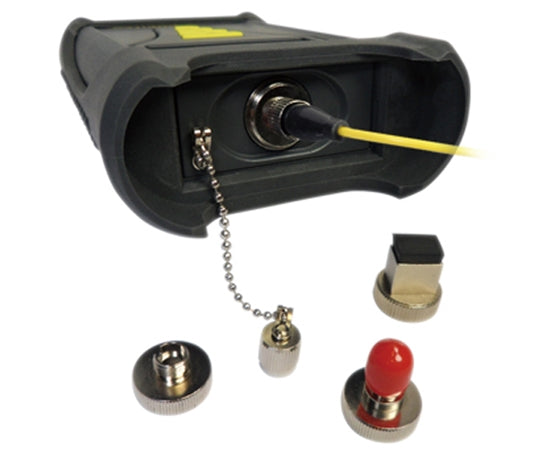

The SMARTFiber includes interchangeable adaptor to connect FC, ST and SC type fiber connectors. It utilizes an InGaAs detector to improved sensitivity and temperature stability to test for standard optical power from +3 to -60dBm dynamic range. It can test both single-mode and multi-mode fiber cables, with the optional adaptor, users can test 2.5mm and 1.25mm fiber cables. For identification purposes, the SMARTFiber can also receive modulate signals(270Hz, 1KHz, 2KHz) simultaneously.

For fast and easy operation in testing the corresponding wavelengths, we recommend the OPTISource as a complete set in auto-identifying wavelength of optical power source.

Features

  • Simple to use and portable
  • Calibrated at 850nm, 1300nm, 1310nm, 1550nm
  • Accuracy: ±0.15dB±1nW@1300nm/1310nm/1550nm; ±0.25dB±1nW@850nm
  • Optical power range from +3 to -60dBm
  • Measurement units in dBm and Watt
  • Ideal for both multimode and singlemode optical fibers
  • Optional adapter to test both 2.5mm/1.25mm fiber cables
  • Can receive modulate signal (270Hz, 1kHz, 2kHz) simultaneously for identification
  • Battery indicator and power auto off function
  • Automatic wavelength detection (when used with Hobbes OPTISource as optical light source)

Specifications

Specifications
Sensor Type InGaAs
Wavelength 850nm, 1300nm, 1310nm, 1550nm
Dynamic Range +3 to -60dBm
Accuracy ±0.15dB±1nW@1300nm /1310nm /1550nm; ±0.25dB±1nW@850nm
Resolution 0.01dBm
Unit dBm, mw
Fiber Connector Interchangeable Adaptor for FC,ST, SC
Battery 4 x AAA (6V)
Dimensions 131mm x 86mm x 40mm

What's In The Box

  • Qty 1 - SMART Fiber - Fiber Optic Power Meter
