Former Part Number: CN1-3198-UR
Description
Description

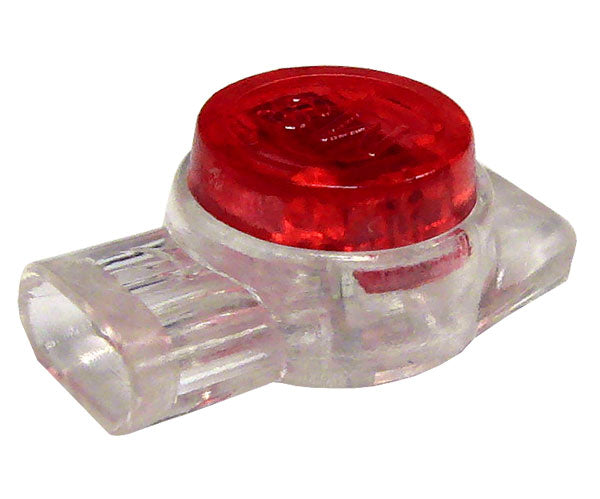

UR Gel-Filled Telecom Splicing Connector
The UR Gel-Filled Telecom Splicing Connector utilizes an insulation displacement contact design for fast, simple, reliable terminations. No wire stripping is required, and connectors will accept wire of different gauges. All splice connectors are gel-filled to provide moisture resistance and inhibit corrosion.
For use with solid copper conductors only. Typical uses include Butt Splicing 2 or 3 wires of the same or different gauges. Perfect for pigtail and load coil splice applications. This eliminates the cutting of cable pairs or opening cable pairs. For best results, crimp with Connector Pressing Telcom Pliers.
Features
Features
- Utilizes an insulation displacement contact design
- Enables fast, simple, and reliable terminations
- Eliminates the cutting or opening of cable pairs for simple and quick terminations
- No wire stripping is required, making installations faster and neater, as there is no mess to clean up
- Connectors will accept wires of different gauges
- Gel-filled to provide moisture resistance and inhibit corrosion
- For use with solid copper conductors only
Specifications
Specifications
| Works with: | 19AWG to 26AWG |
| Capabilities: | 2 or 3 Wire |
| Max Insulation OD: | .066" (1.67mm) |
Ideal For:
| Butt splicing 2 or 3 wires of the same or varying gauges |
| Pigtail and load coil splice applications |
| Eliminates the cutting of cable pairs or the opening of cable pairs |
The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.
Additional Information
Additional Information
What's In The Box
What's In The Box
- Qty 1 - Telecom Splicing Connector, UR-Gel Filled, 19- 26AWG
