Description

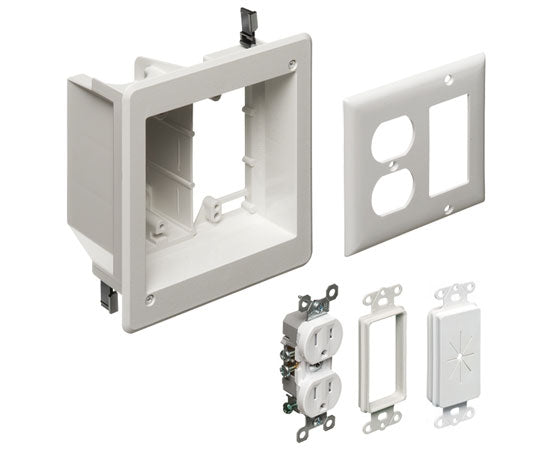

Two-Gang Recessed TV Box Kit - Power & Cable Entry Box
Our Recessed Two-Gang TV Box Kit is for power and low voltage cable. This kit can be installed in new or existing construction and is a non-metallic, recessed combo box for power and low voltage for class 2 wiring of satellite or cable TV, speakers, and more.
This box utilizes the easy-to-use mounting wings and a textured/printable Trim Plate that covers the edges of the cut wall surface for a professional finish. This kit includes one 2 port power outlet and one low voltage SCOOP™ series entrance hood and plates.
Features
Features
- Two-Gang Recessed combo box allows you to mount LCD/plasma TVs and other system components flush against the wall
- For new work...use supplied screws to install on a stud. For convenience, box positioning tabs are set for 1/2" or 5/8" drywall
- Trim plate is textured/paintable and covers the edges of the cut wall surface
- Mounting wings hold the bracket securely against a wall when screws are tightened
- For walls up to 1-1/2" thick
- Use with The SCOOP™ series entrance hoods and plates
Specifications
Specifications
| BASIC INFORMATION | |
|---|---|
| Part Number | TVBR505K |
| Description | Plastic recessed TV BOX for power and low voltage. retrofit only. Kit includes recessed combo box, (1) tamper resistant duplex receptacle, Arlington's SCOOP, Arlington's PASS THROUGH devices and cover plate. |
| UPC-A | 018997096708 |
| Unit Packaging | 1pc |
| Standard Packaging | 4pcs |
| PHYSICAL INFORMATION | |
|---|---|
| Weight | 0.898 lbs/each |
| Height | 6.698" |
| Width | 6.012" |
| Color | White |
| Material(s) | Plastic |
| TECHNICAL INFORMATION | |
|---|---|
| Application | Kit to Mount LCD/Plasma TVs and other System Components Flush Against-the-Wall for New or Existing Work |
| Style | Three-Gang Recessed Power and Low-Voltage TV Box™ Kit |
| Trade Size | 2-Gang |
| Wall Depth | 1/2", 5/8", and up to 1-1/2" |
Additional Information
Additional Information
Installation Instructions are shown with the 3-gang (TVU507)
What's In The Box
What's In The Box
- Qty 1 - Tamper-Resistant Duplex Receptacle
- Qty 1 - Recessed Combo Box
- Qty 1 - CEDH1 SCOOP™
- Qty 1 - CED130 SCOOP™
- Qty 1 - 2-Gang 1-Standard-Style 1-Decorator-Style / GFCI Wall Plate with screws
