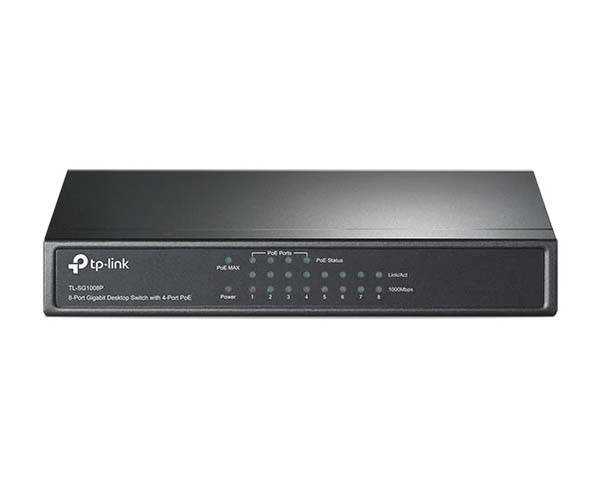

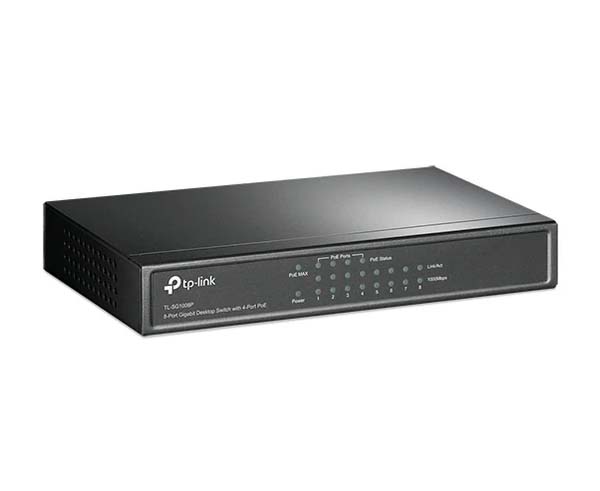

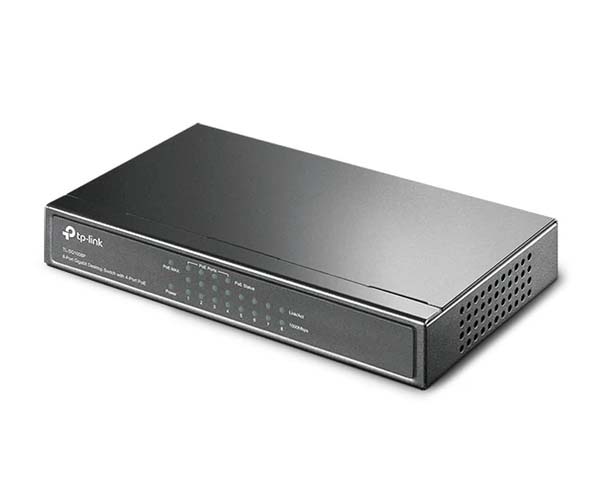

Unmanaged 8 Port Ethernet Switch with 4 PoE Ports, 10/100/1000Mbps
8 Port Ethernet Switch with 4 PoE Ports, Steel Case
What This Product Does:8 Port Gigabit Desktop Switch with 4 Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.
How This Product Works

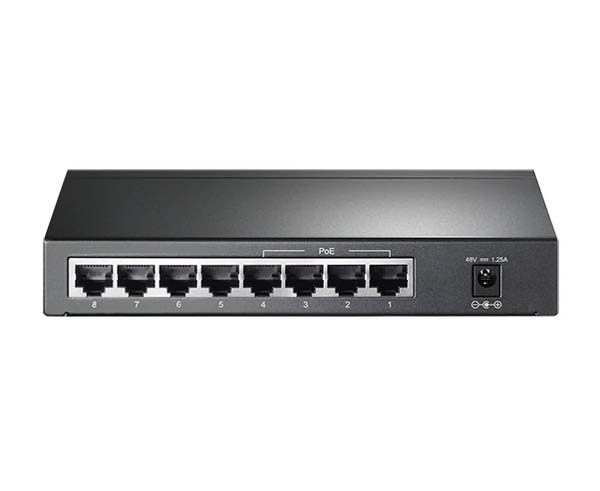

4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
NPNB-TL-SG1008P has the priority* function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
*Priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 15.4w (maximum power per port is 15.4W), the system power is 46.2w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 15.4w, and Port3 will use 10w, and no power will be supplied to Port 4.
Easy to Use
TL-SG1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the NPNB-TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 55W for all PoE ports
- Supports PoE IEEE 802.3af compliant PDs
- Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- 4K entry MAC address table of the TL-SG1008P with auto-learning and auto-aging
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- LED indicators for monitoring power, link, activity and speed
- External power adapter supply
|Interface||8 x 10/100/1000 Mbps RJ45 Ports, Auto-Negotiation/Auto MDI/MDIX
|Power Supply||External Power Adapter (Output: 53.5VDC / 1.31 A)
|Dimensions (W x D x H)||6.7 x 3.9 x 1.1 in (171 x 98 x 27 mm)
|Max Power Consumption||
5.39 W (220/50 Hz no PD connected)
75 W (220/50 Hz with 64 W PD connected)
|Max Heat Dissipation||
18.38 BTU/h (no PD connected)
225.75 BTU/h (with 64 W PD connected)
|Switching Capacity||16 Gbps
|Packet Forwarding Rate||11.904 Mpps|
|MAC Address Table||4 K
|Jumbo Frame||16 KB|
|Certification||FCC, CE, RoHS|
Microsoft® Windows® for Easy Smart Utility
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Ethernet Switch Accessories
An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our Ethernet Switches please visit our overview page. These Switches can be combined with a wide array of products such as:
- CAT6 Ethernet Cables
- CAT6A Ethernet Cables
- CAT5E Ethernet Cables
- PoE Splitter, Fast Ethernet, 1 Port
What's in the box?
- Qty 1 - 8-Port Gigabit Desktop Switch with 4-Port PoE
- Qty 1 - Power Adapter
- Qty 1 - Installation Guide
