Wall Mount Fiber Patch Panel, Added Security, Up to 12 Ports

$156.65
SKU: FB23-3958WAS2B
Various lead times may apply to this product. Please contact us for more details.

Adapter panels and splice trays NOT included.

This fiber patch panel is only compatible with our FB24 adapter panel inserts and FB25-3995STP12 splice tray. To find out more, give us a call or email us.

Description

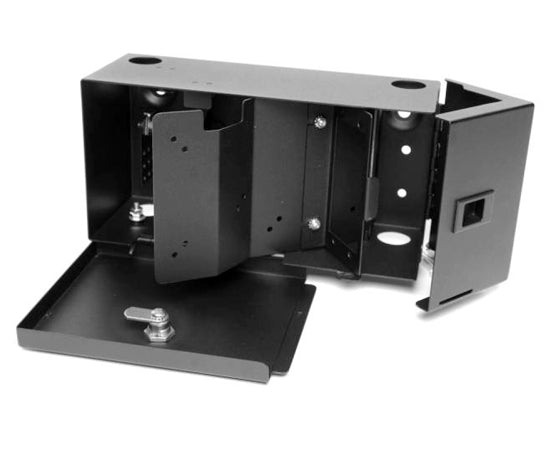

Wall Mount Fiber Patch Panel, Added Security, Holds 1 Splice Tray and 2 Adapter Panels, Up to 12 Ports, Black

This very compact wall mount fiber patch panel is designed to support patching and splicing in one fiber enclosure. The fiber housing has 2 adapter panel positions allowing for the termination of a wide variety of fiber connector styles. The housing has an inner swing out panel that stores pigtail slack and reveals the storage area for the enclosures splice tray. Two outer doors with a lockable Network compartment are designed to maintain termination security. The FB23-3958WAS2B is one of a family of units that support fiber termination and splicing in wall mount applications. Black, Steel.

Features

Wall Mount Cabinet Features:

  • 1 splice tray capacity.
  • 2 termination panel capacity.
  • Can be customized with custom logo.
  • Lockable network door for added security.
  • Swing panel that stores pigtail slack and reveals splice tray.

Specifications

Capacity

Splice Trays: (1) 12 Fiber Splice Tray Sold Separately
Panels: (2) Panels Sold Separately


Dimensions

Depth: 4.5"
Height: 12"
Width: 6"
Weight: 9 lbs


Physical Properties

Color: Black
Material: 16 Gauge Powder Coated Steel
